Between single and double coils, different capacitor values, phase inversions or series and parallel configurations, the list of alternative wiring possibilities for your guitar is endless. Normally, this type of modification requires dismantling your electronics, opening the guitar, arming yourself with a good soldering iron and patience to modify the circuit and configure a fixed and not very flexible combination of microphones. Not to mention the addition of switches, push-pull, a toggle, etc.

Thanks to its new HYPERSWITCH, Seymour Duncan offers you an intelligent switcher to relegate this headache to the past and manage everything using a Bluetooth mobile application.

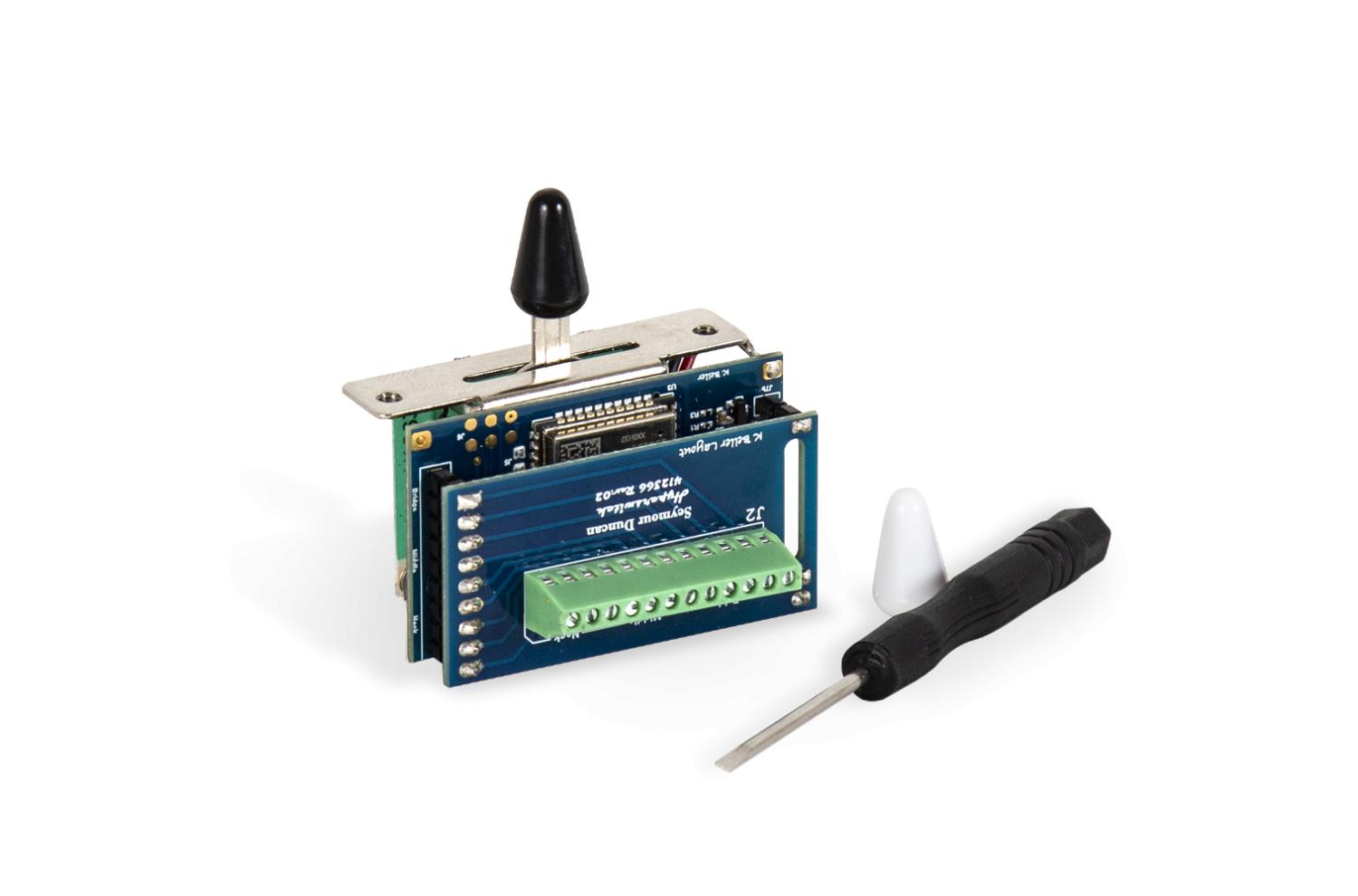

Seymour Duncan 5-position Bluetooth Hyperswitch

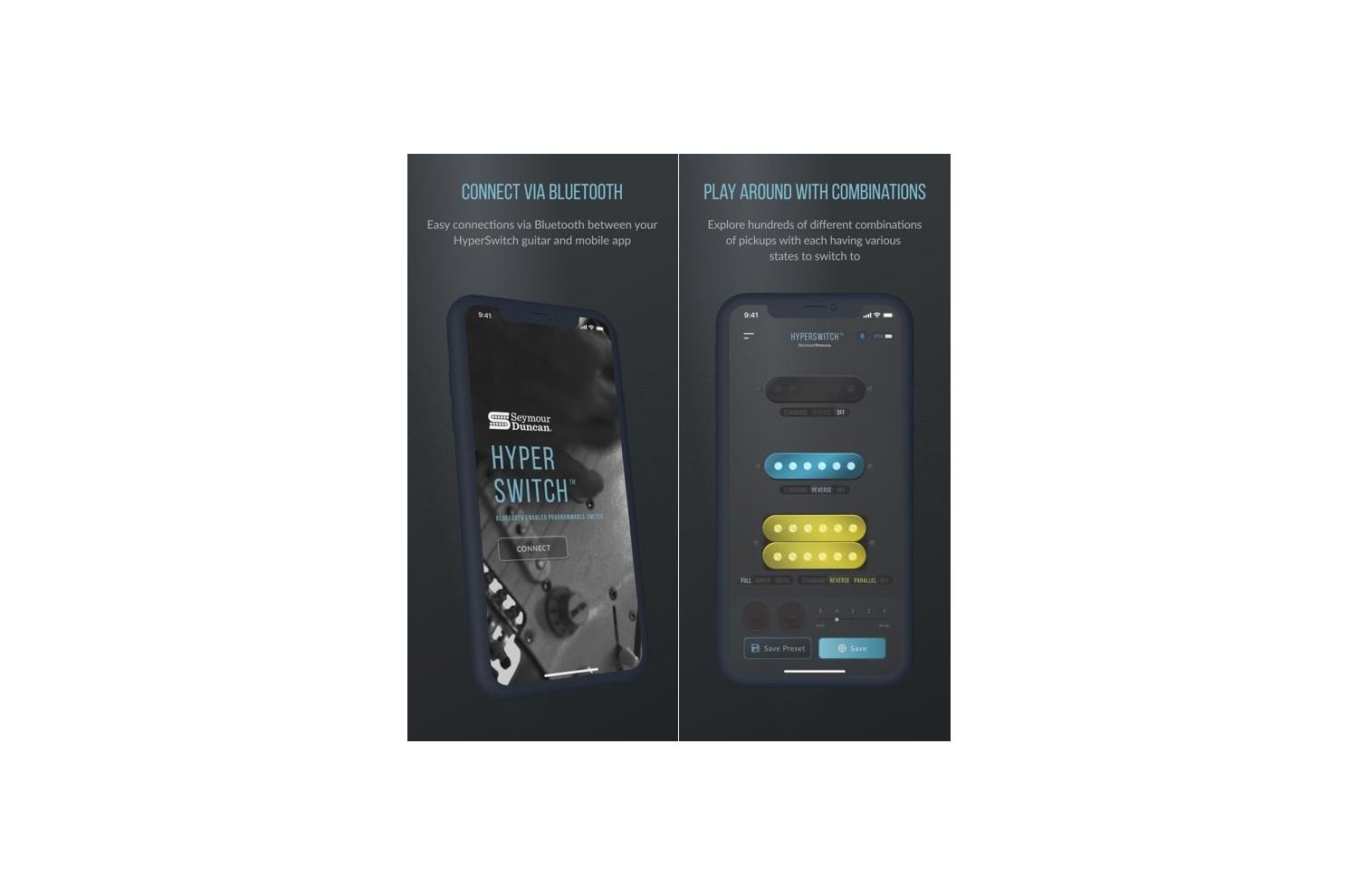

The HYPERSWTCH is a 5-position stratocaster -type selector that allows you to modify the wiring and its options in an instant, without any effort, without soldering, by connecting to your phone's Bluetooth. With the HYPERSWITCH, thanks to the integrated processor, you can design, save and recall multiple wiring configurations using a dedicated, very easy-to-use application.

The HYPERSWITCH is compatible with the majority of passive microphones and requires power from a simple 9V battery. Whether it's making your Les Paul sound like a Strat, or the other way around, testing out-of-phase sounds like Brian May or just adding new tones to your palette, Seymour Duncan 's Hyperswitch opens the door. field of sound possibilities without requiring great electronic skills.

Compatible with most passive pickups, the HYPERSWITCH offers you different possibilities depending on the type of pickup (single, humbucker, single format humbucker, stacked, P-Rail, etc.), all with great simplicity thanks to a connection system solderless, in an electronic connector.

How the Seymour Duncan Hyperswitch works with single and double coils:

Single coil:

• Standard: standard direction of the signal
• Reverse: reversing the coil
• Off: the pickup can simply be muted

Humbucker:

• Standard Full: coils in series with standard current direction
• Standard South Coil: Split to leave only the South coil active, standard polarity. For the majority of humbuckers, the South coil is the one with the screws. This is usually closest to the neck on pickup neck -position pickup and closest to the bridge on a pickup -position bridge .
• Reverse South Coil: Also split with reverse polarity.
• Reverse Full: Coils in reverse polarity series.
• Standard North Coil: Split to leave only the North coil active.
• Reverse North Coil: Also split but polarity reversed.
• RP: Coils out of phase in parallel, hot spot at start of coil
• PRP: Out-of-phase coils in parallel but inverted, hot spot at end of coil
• Off: Any coil can be turned off, one or both.
