Fender CTS 500K audio/log vintage guitar and bass potentiometer kit

Fender CTS 500K audio/log vintage guitar and bass potentiometer kit

• Fender CTS 500K audio/log vintage guitar and bass potentiometer kit for split-axis Stratocaster and Telecaster;
• Original Fender CTS USA CTS Genuine” electronic part sold individually;

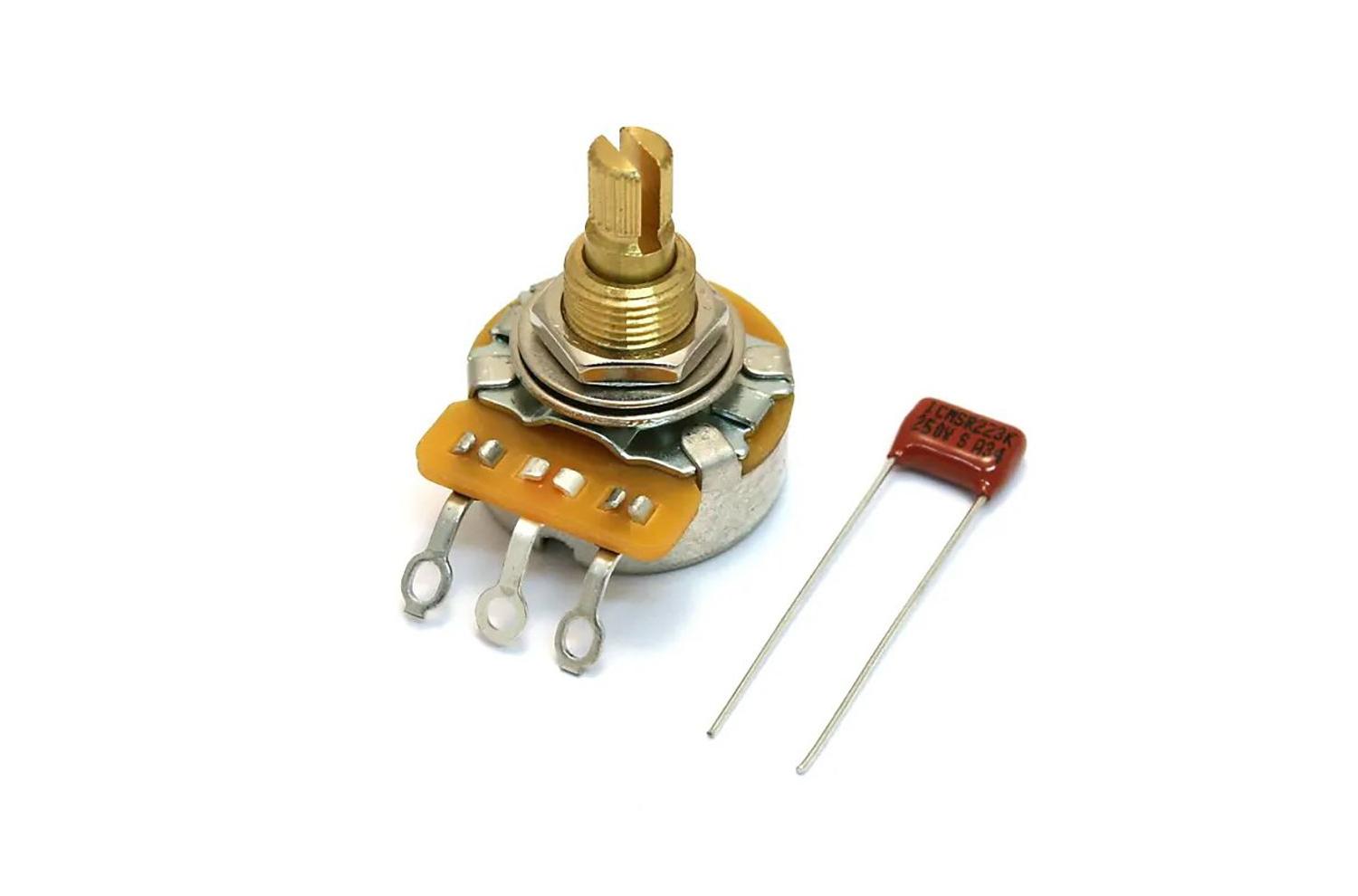

• Potentiometer delivered with screws and polypropylene Mylar capacitor .022uf/200V;
• Standard spare part on all Am Deluxe models with inch (9.6mm) diameters;
• Fender reference: Original Tone Volume Controle 500K Split shaft 099-0834-000 .

Strat CTS 500K Audio Split Shaft Potentiometer Kit

These potentiometers are designed to be compatible with all Fender brand pickguards in 1 ply (one thickness) up to 3 ply (2.7mm thickness max) and offer stable and balanced volume or tone control (OEM fitted on all Fender USA or Mexico Strats).

• Vintage format +/- 3% tolerance, 23.8mm diameter;
• Socket height 9.2mm;
• Axle 5.85mm in diameter, 9mm in height;
• Total height of the screw thread = 6mm;
• Total height of the screw thread + notched axis = 15mm
• fender type push-in button made in usa with 24 grooves;
• Requires mounting holes from 9.6mm to 10mm in diameter.
