Fender American Classic Vintage Stratocaster Telecaster machine heads

Fender American Classic Vintage Stratocaster Telecaster machine heads

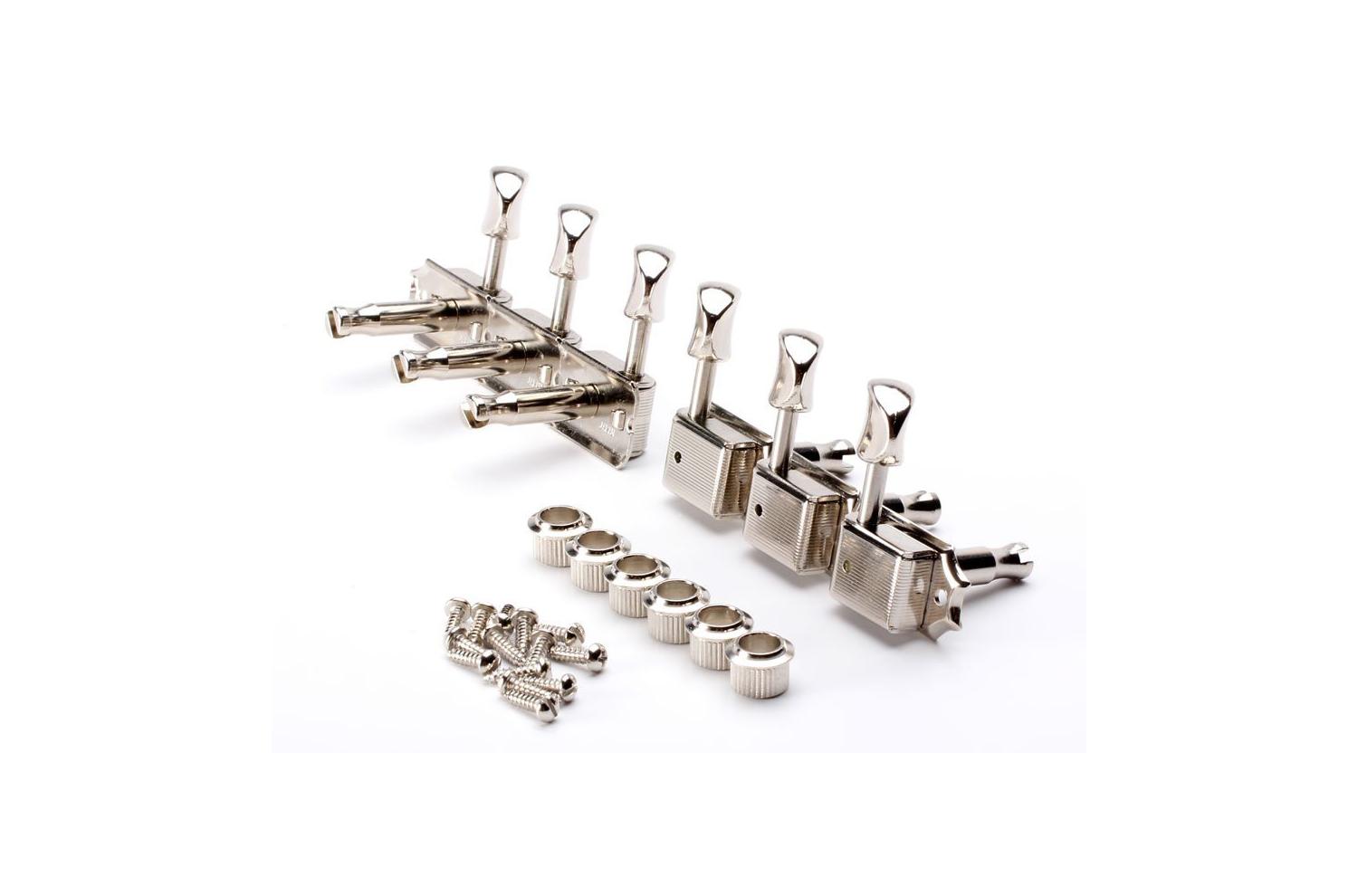

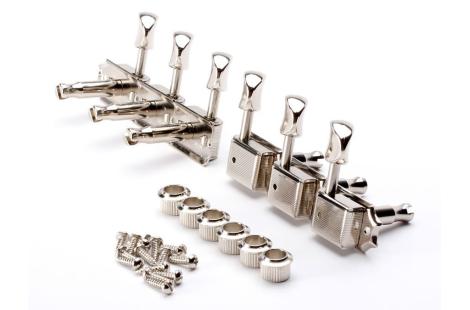

Fender® Gotoh type tuners with specific American Vintage dimensions: rounded rear cover, tuners shaft 6.35mm to 6.5mm in diameter, bushings fit into holes 9.1 to 9, 2mm in diameter, the mounting rings are 9.2mm in diameter on the spline side depending on the series, around 6.5mm in internal diameter for 6.35mm diameter axles.

American Original Vintage Fender Strat/Tele Tuners

• THE REAL standard American Vintage type Gotoh Fender® vintage machine heads from 1954 to 1964 pre CBS. Renowned for their tuning stability and their solidity, these machine head tuners are available in a choice of "Gold" or "Chromium" finish;
• Machine heads fitted as standard on American Vintage Reissue USA necks, machine head tuners stamped "made in Japan" but made in Korea since the end of 2016 ;
• Identical screwing locations on the sleeves equipped with Gotoh , Ping or Kluson , model compatible with vintage type sleeves made in Japan and all American Vintage, Artist or Custom Shop Vintage USA series;
• Fender® part number reference: 099-2040-000.
