American Vintage Reproduction 1952/55 Telecaster Control Plate

American Vintage Reproduction 1952/55 Telecaster Control Plate

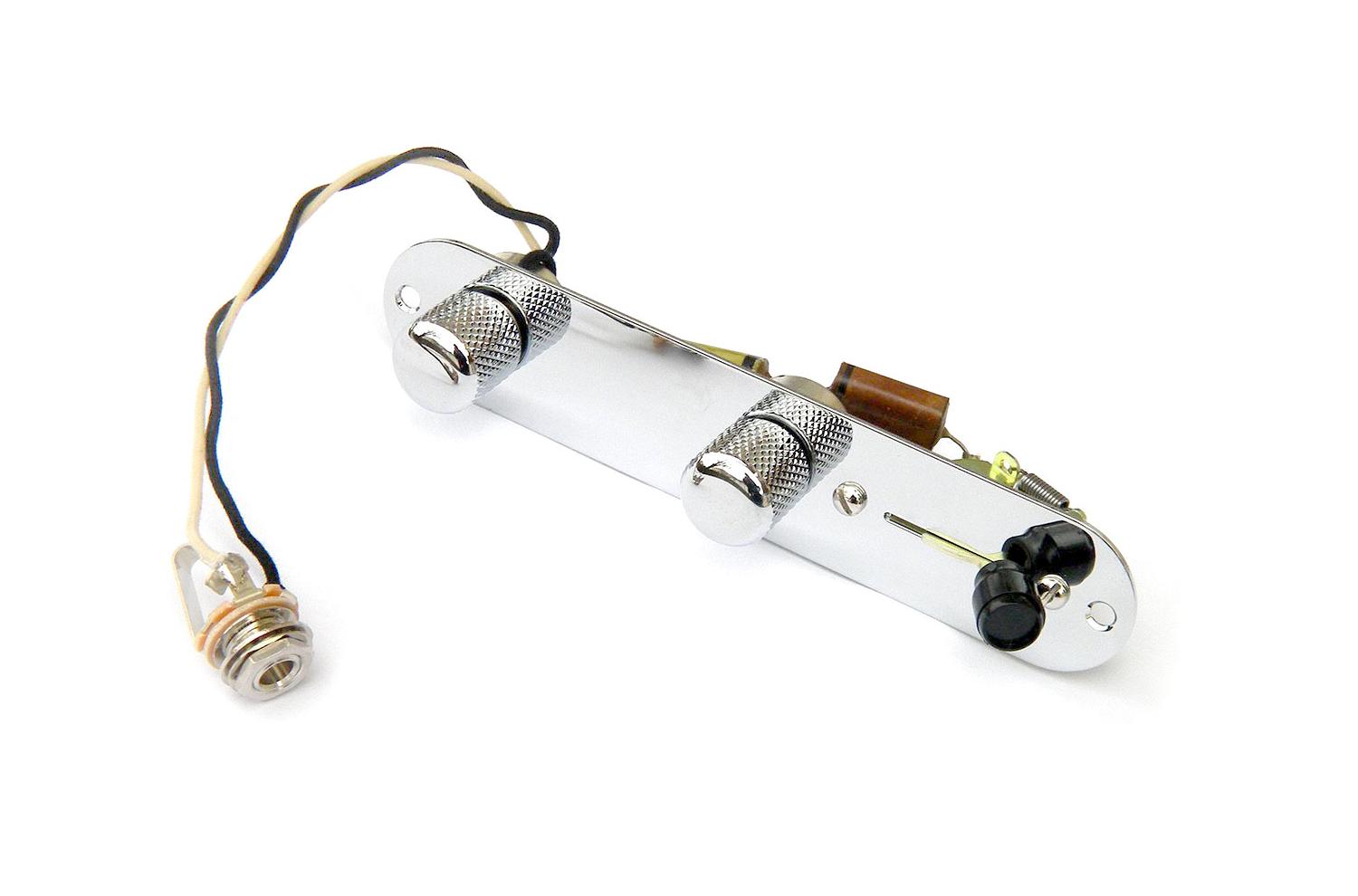

Nickel/ chrome brass plate delivered with mounting screws, assembly plan downloadable above, the plate can be adapted to almost all Telecaster models (photos for information only, plate with Telecaster Vintage USA dimensions).

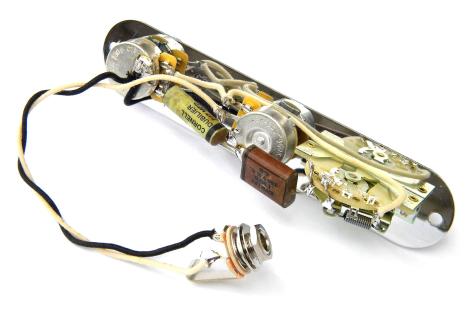

• "Prewired" electronic control plate Telecaster® American Vintage® 1950 to 1952-1954 Reissue made in USA : CRL 3-position selector, vintage potentiometers of your choice CTS 250K in tone and 250K or 300K or 500K Audio in volume of your choice, ask when ordering order ;
• “Pure tone full contact” nickel female jack base;

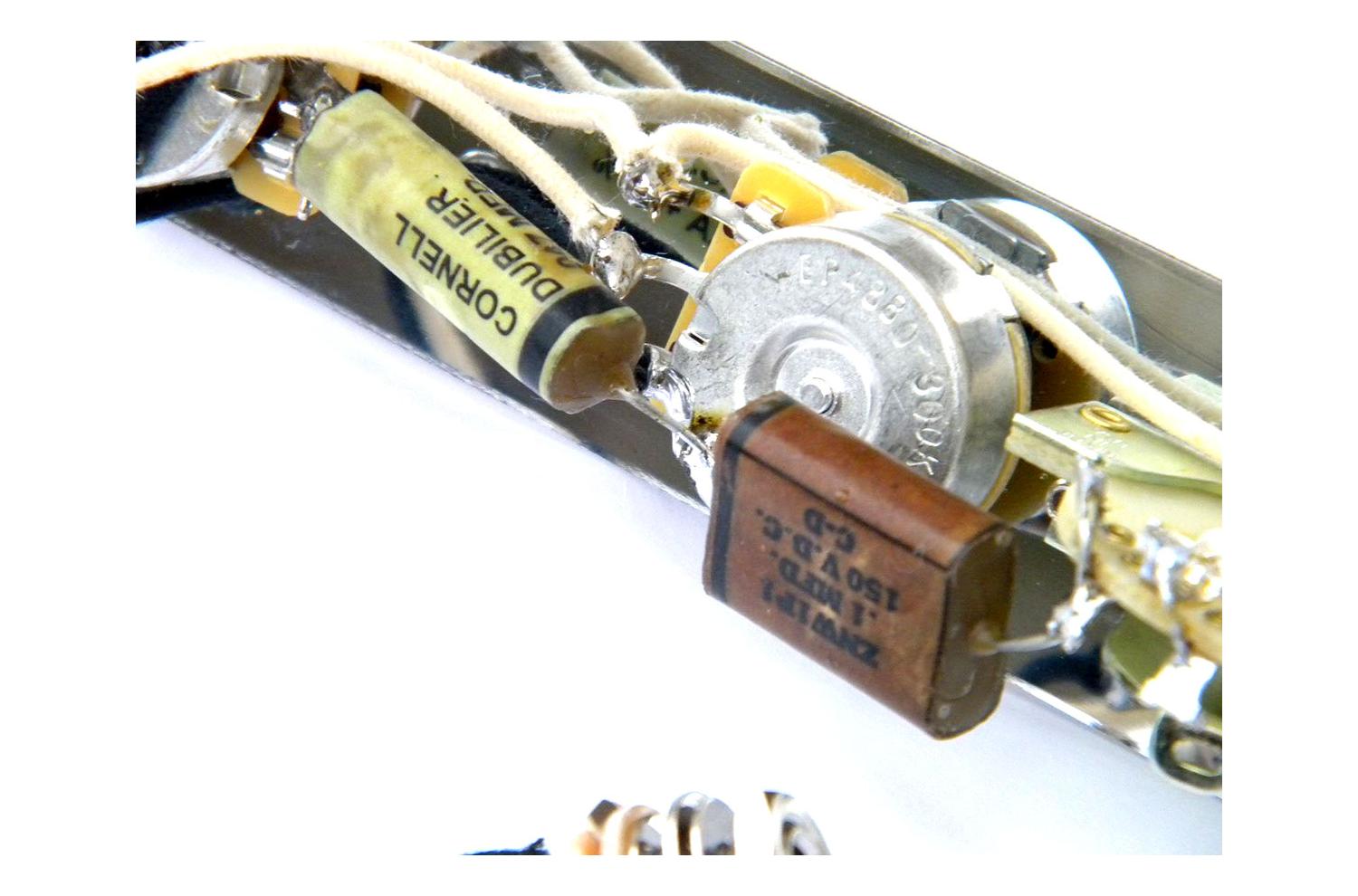

• Two "paper in oil" capacitors reproduction Cornell Dubilier period 1950s .1uf 150VDC and .05uf 150VDC;
• Wiring in vintage single-conductor shielded copper wire, waxed cotton push-back fabric sheath;
• Delivered assembled with two dome type potentiometer knobs of your choice, nickel/chrome brass knobs, vintage black "rounded 50's" type switch knob ;
• Connect your mics and jack and you're ready to go.

Fender Telecaster American Vintage 1952 Pre-Wired Control Plate

Different circuit from the braodcaster, allows you to have a very "loudness" and precise sound on the 3 positions. Position 2 does not combine the 2 microphones in parallel. Position 1 for the bridge pickup is connected to the tone circuit (.05uf/150VDC), position 2 engages the neck pickup alone with tone circuit (.05uf/150VDC) and position 3 pickup activates the neck pickup separated from the circuit tone but connected to the .1uf/150VDC capacitor in jazzy loudness mode.
