Mini electronic wiring kit (wiring kit) for Fender® type 60's vintage Telecaster : Kit to modify your Telecaster electronics, upgrade your assembly to a vintage classic 60's type electronics (photos for information only).

Kit Electronic wiring Upgrade 3 positions Telecaster Vintage Standard

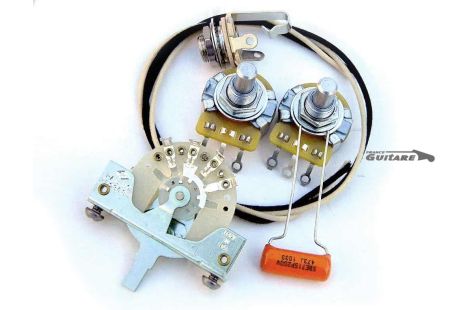

Contents of the USA Telecaster wiring kit:

• 2 vintage smooth shaft potentiometers for Telecaster® CTS audio/Log in 250K and 500K for tone or volume with full smooth shaft (or 300K, 500K both on request) ;
• 1 CRL USA or Grisby USA 3-position selector with mounting screws;
• 1 x Orange Sprague Capacitor Polypropylene Capacitor .047uf/250V;
• 2 electronic wiring wires of 50cm each, yellow or white and black vintage "cloth wire" type (Vintage “cloth” wire) , a single hot copper conductor, no plastic insulation resonances, superior quality copper wire ;
• 1 Switchcraft mono or pure tone female jack socket, inch thread.

Download the standard 3 position Telecaster wiring diagram for Telecaster in SS or HS mode for this type of circuit
