American Vintage 1952 Telecaster Electronic Circuit Wiring Kit

Share :

Telecaster 52 Wiring Kit, Tele American Vintage 1952 electronic circuit: 2 CTS 250K audio/log vintage smooth shaft potentiometers, 3-position CRL selector, 2 reproduction Cornell Dubilier oiled paper capacitors (PIO) .047uf/150VDC and .1uf/150VDC with sheathed wire push-back.


Free delivery France Only Satisfied or refunded Secure online payment

109,00 €

103,55 €

In stock delivery 72h

Add to wishlist

Secure payments

American Vintage 1952 Telecaster Electronic Circuit Wiring Kit

Wiring kit unsuitable for mounting Telecasters with HH or HS routing except by modifying the capacitor and potentiometers offered in the kit. Contact us for this purpose if necessary.

Electronic circuit wiring kit Fender Telecaster American Vintage 1952: Kit to modify your electronic circuit of your Telecaster and upgrade it to a vintage type assembly Custom Shop reproduction period 1951/52 in the old style with capacitor reproduction in the old oiled paper (PIO ) handmade in the USA .

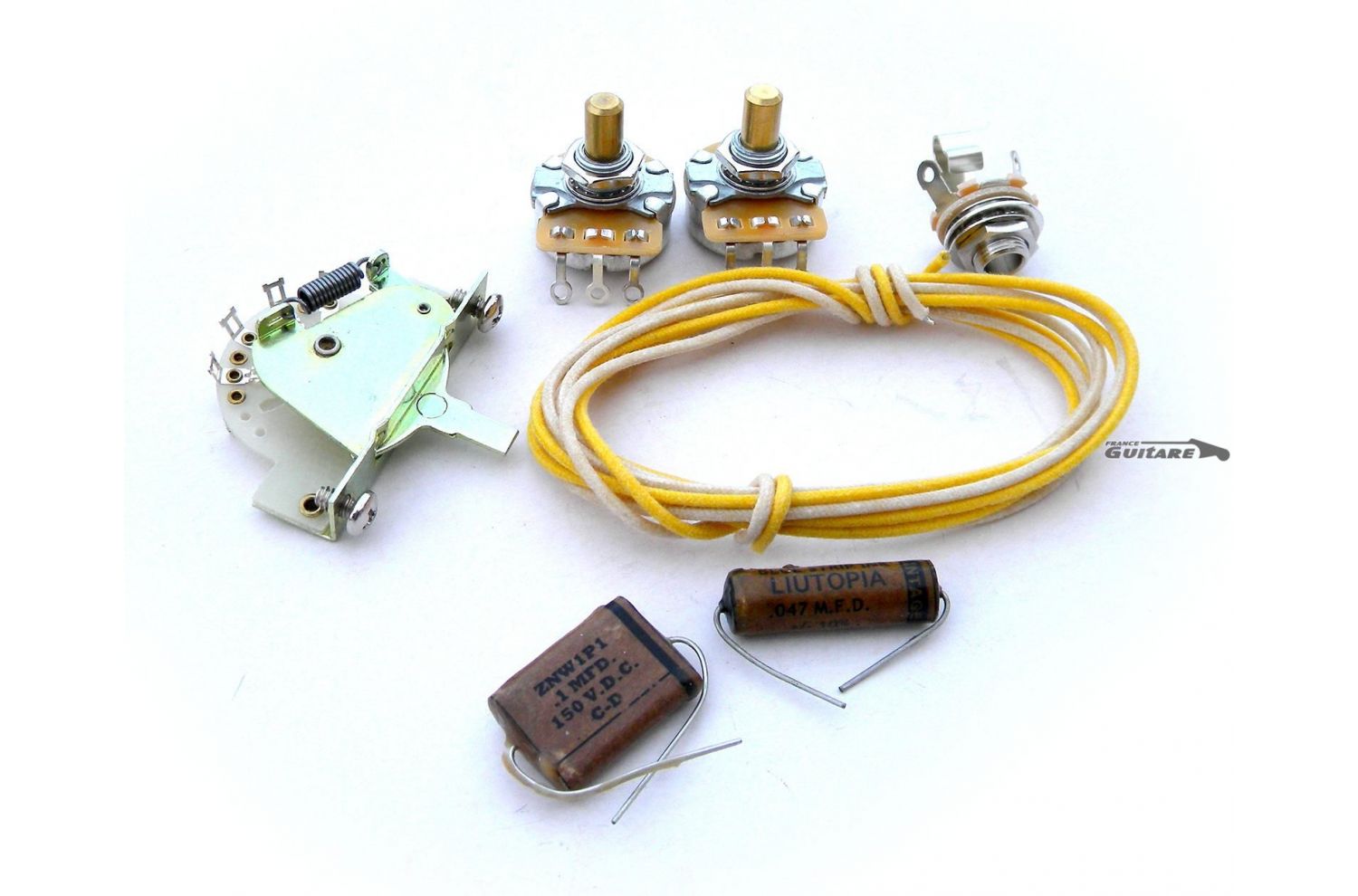

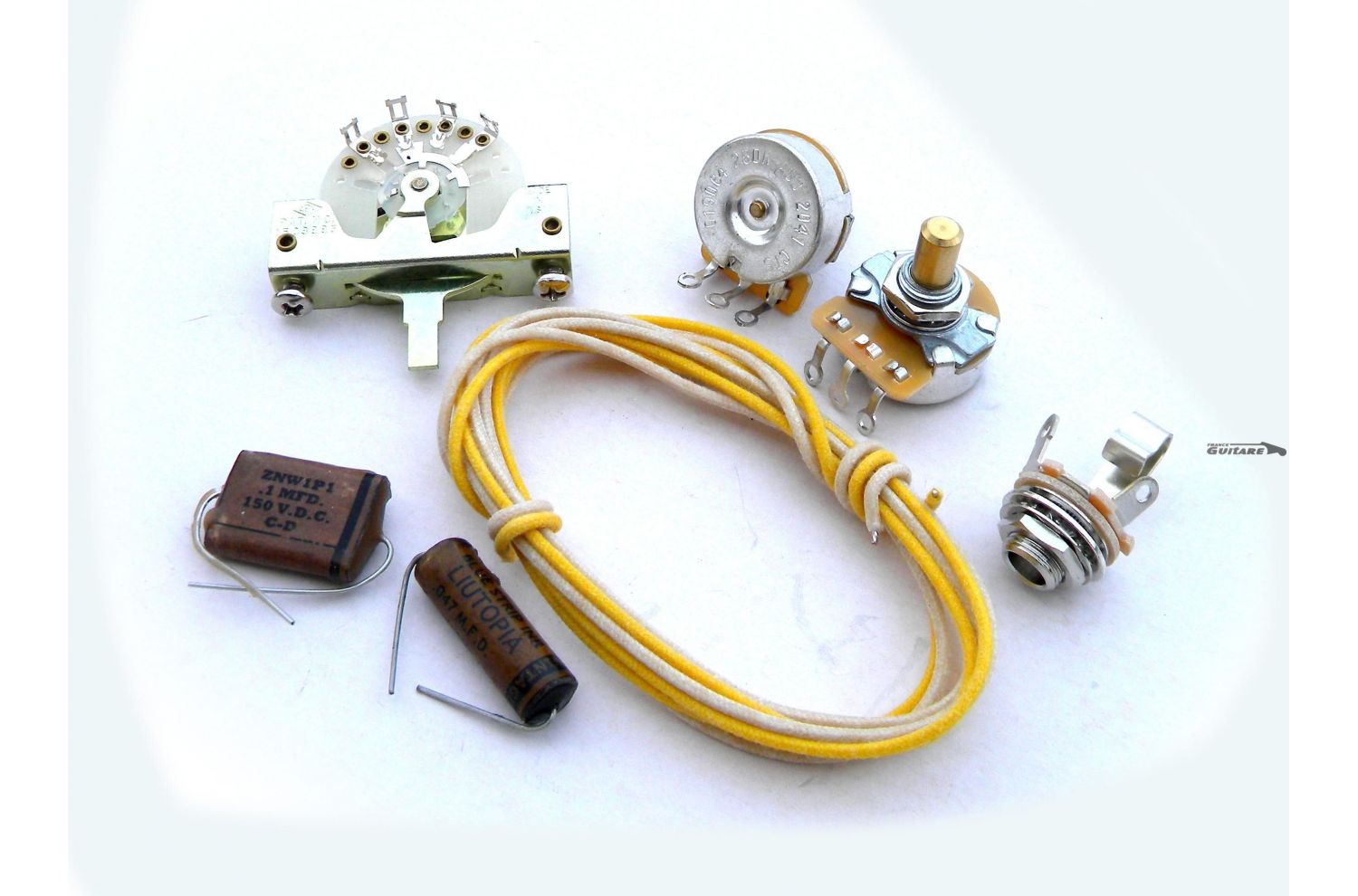

American Vintage Telecaster Wiring Kit '52 Cornell Dubilier

  • 2 Genuine Fender Telecaster® CTS 250K audio/log solid/smooth axis potentiometers;
  • 1 CRL Made in USA 3-position selector with two mounting screws;
  • 2 Liutopia vintage reproduction PIO capacitors reproduction Cornell Dubilier .047uf/150V and Cornell Dubilier .1MFD/150V (the .047uf tone capacitor can be replaced with a .022uf/400V upon request);
  • 2 cabling wires of 1m each of yellow and white push-back "cloth wire" type, a single hot copper conductor, absence of plastic insulation resonances, superior quality copper wire;
  • 1 Switchcraft mono female jack socket with inch thread (made in USA ).
FD 2022-05-10

kit circuit telecaster 52

parfait, du vrai condensateur PIO conforme, les potards sont stable, le CRL rien à dire, bref, très bon kit livré avec plan conforme.

    joullleLa6strings 2022-05-10

    kit cablage tele 52

    juste conforme à l'indentique avec plan de câblage fender, raccord particulier et reconnaissable entre 1000 mais c'est ce que j'aime sur une tele vintage avec des micro nocaster...

      nicolefou 2022-03-02

      trés étrange et qualitatif à la fois

      je savais pas que la 52 était câblée comme ça et en définitive ça change radicalement le montage de ma 3 positions habituelle et ouvre une nouvelle manière de gérer mes sonorité. les composants sont de super qualité, très content de mon achat livré rapide et super bien emballé
