Fender Telecaster Baja Classic Player 50s S-1 circuit wiring kit

Share :

Fender Telecaster Baja Classic Player 50s S-1 circuit wiring kit, 4-position pickup selector, 1 S1 volume switch, 1 vintage audio potentiometer, capacitor, base, treble bleed and wiring wire. Fender Telecaster Baja Classic Player Wiring Kit.

Free delivery France Only Satisfied or refunded Secure online payment

76,90 €

This product is no longer in stock

Add to wishlist

Secure payments

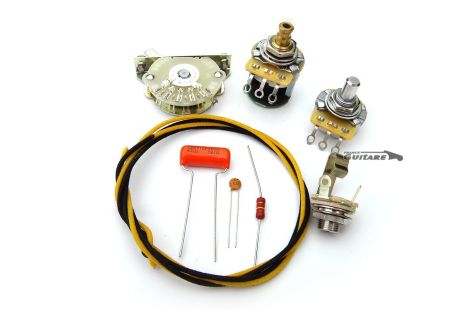

Fender Telecaster Baja Classic Player 50s S-1 circuit wiring kit

Classic Player 50's "Baja Tele" Telecaster circuit kit reference, any type of custom circuit is possible according to your desires and needs in 4 positions and in SS or SH mode, SSS, etc. With single or double pickup , Noiseless or standard vintage single coil combined and humbucker on bridge or neck side;

Fender Telecaster Baja 4 Position Switch S-1 Wiring Kit

  • Baja Telecaster electronic wiring kit offers incomparable versatility: 4 to 10 pickup combinations as standard with the S-1 and an additional "on on" switch or a 3-position toggle;
  • Operational kit with any Fender Telecaster from all Mexico and USA series of the Californian brand equipped with noiseless type pickups. This kit allows you to improve the electronic circuit of your Telecaster to have 4 positions and the S-1 potentiometer switch to switch to series or parallel.

This kit offers multiple possibilities, a variety of guitar circuits depending on the desired use of the S-1 switch, usable as a volume potentiometer only , works perfectly with single pickup from 5.8K to 14K resistance, the same for humbuckers.

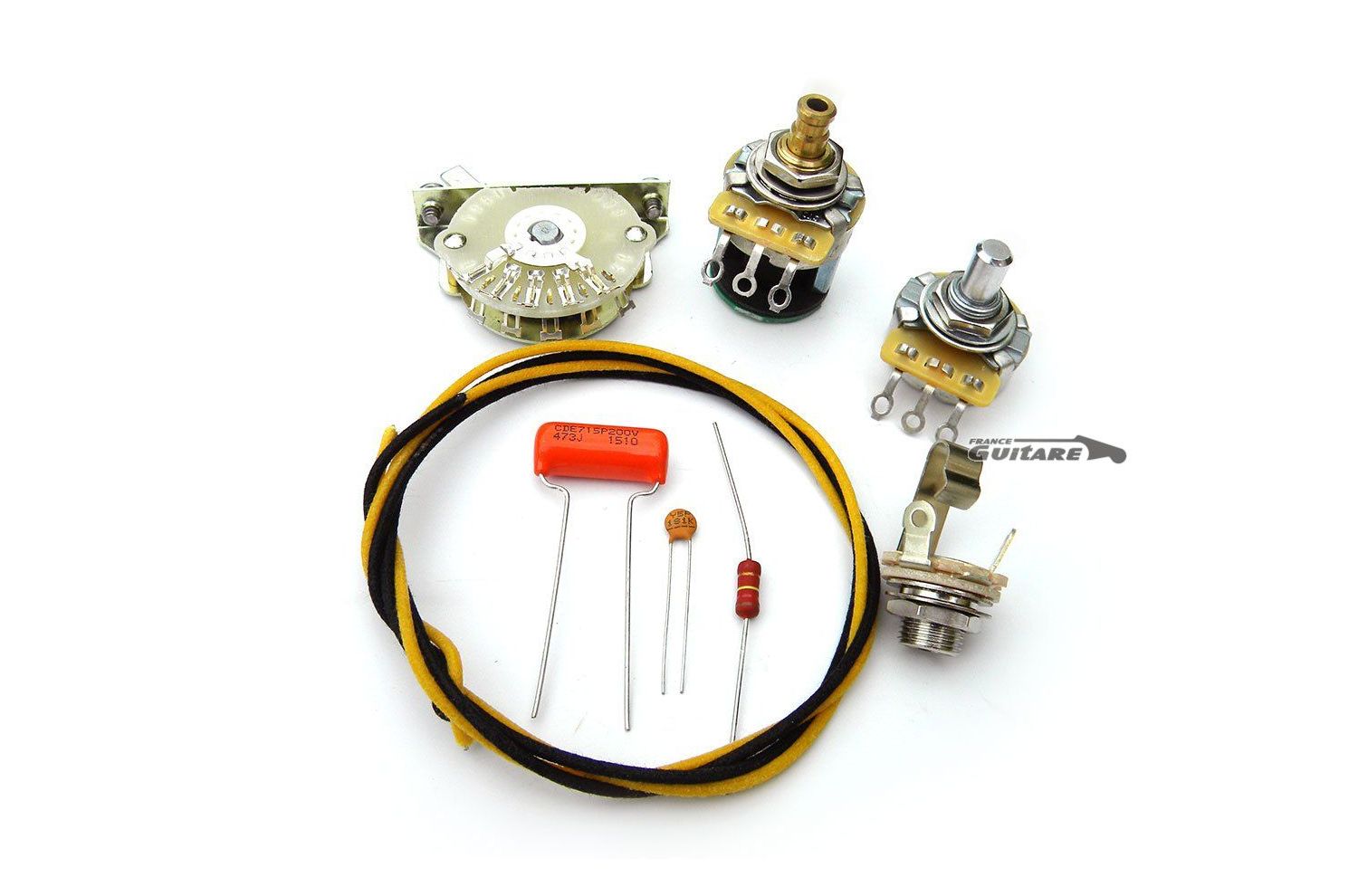

Features Wiring Kit Fender Telecaster Baja S-1 Classic Player 50s circuit

  • 1 CTS 250K or 500K audio full axis smooth vintage audio potentiometer ;
  • 1 Fender switch S-1 USA 250K or 500K Telecaster potentiometer of your choice;
  • 1 Oak/Tip USA 4-way switch with two mounting screws;
  • 1 Orange Sprague Capacitor .047uf or .022uf in 200/250V;
  • 1 x .01uf/100V sprague capacitor;
  • 1 female mono inch "switchcraft" USA jack socket ;
  • 1 ceramic treble bleed condo kit .001uf/200V and 150K resistor;
  • 2 Wires of 50cm each for vintage type "cloth wire" electronic wiring , 2 "22 AWG" wires of 50cm in yellow/white. Made in USA single conductor single strand wire, no plastic insulation resonances, Celanese fiber protective layer, premium quality copper wire for amplifier or guitar circuit.
  • Tele Baja circuit diagram
    Fender Telecaster Classic Player Baja 50's circuit diagram. 4 positions, S-1 series/parallel switch.
