Fender JazzBass Reissue Vintage 1961 Cornell Dubilier Prewired Plate

Fender JazzBass Reissue Vintage 1961 Cornell Dubilier Prewired Plate

Fender Jazz Bass RI 1961/62 chrome plated brass control plate with 2 dual concentric tone/volume potentiometers CTS log USA audio +/- 5% 500K/250K for less hum and more brilliance. Independent volume and tone for each pickup , the whole thing is pre-assembled and ready to solder with single or double coil pickup .

Fender Jazz Bass 1961 Pre-Wired Control Plate

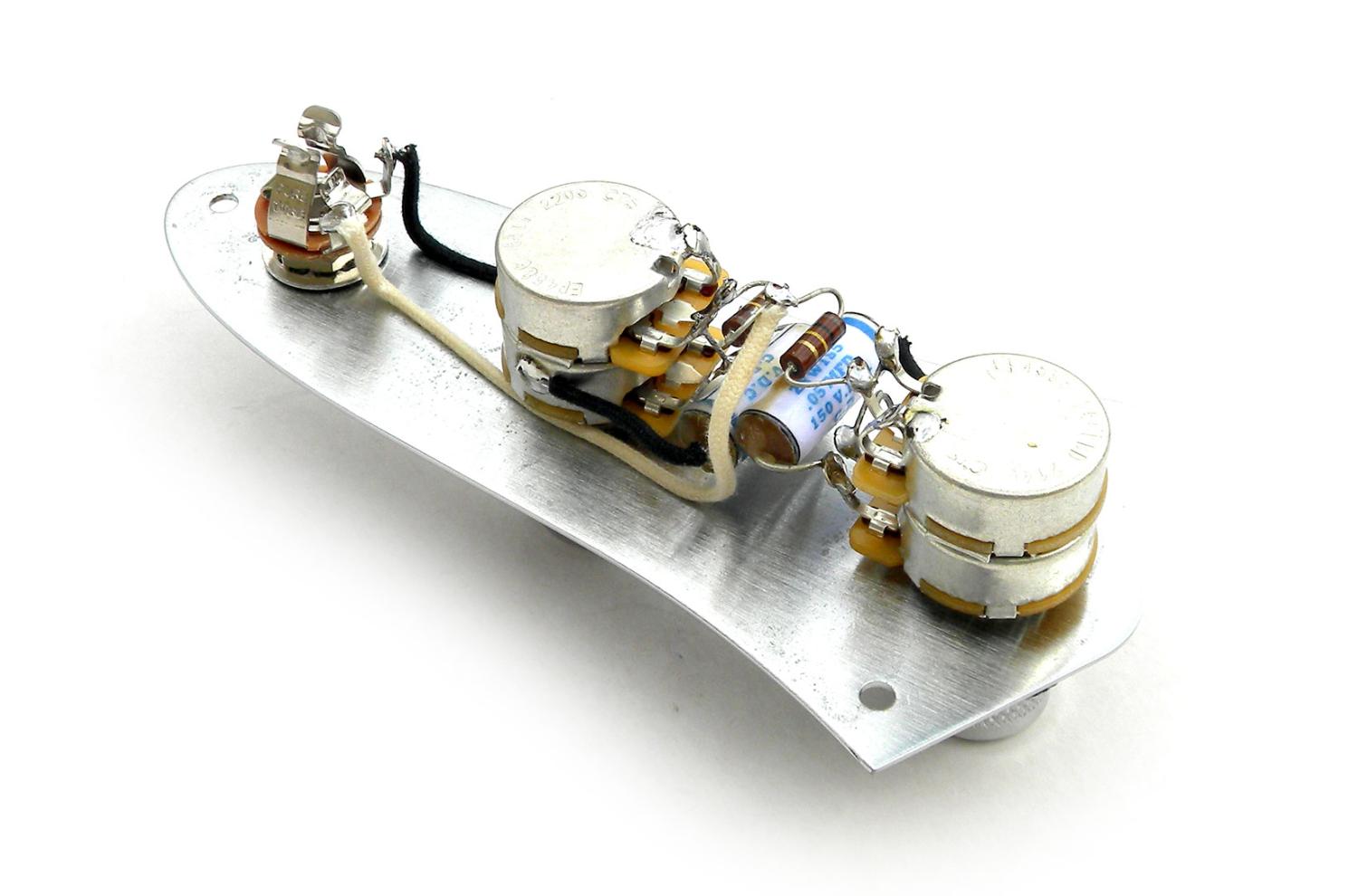

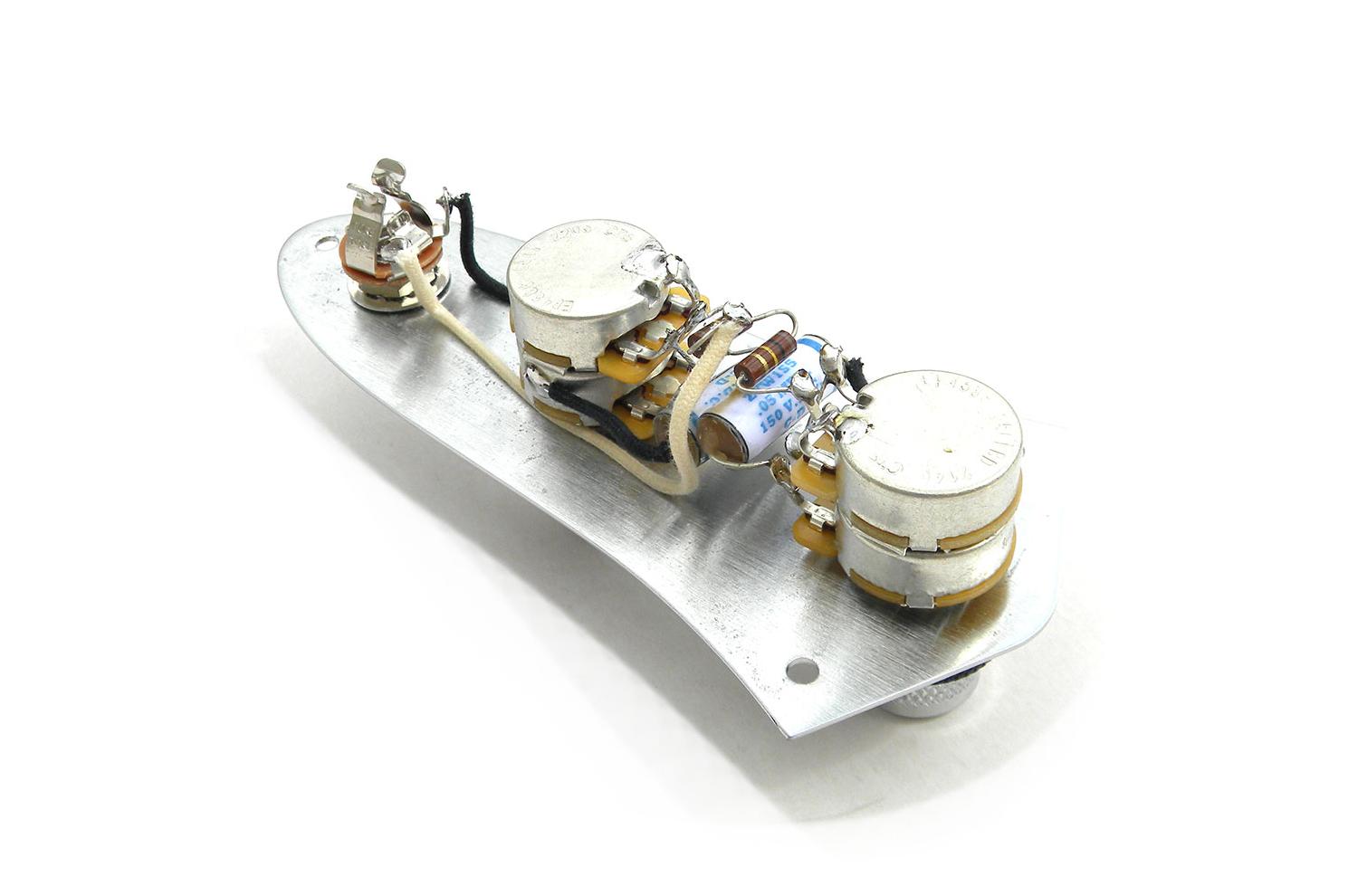

• Electronics mounted with two handmade capacitors reproduction Cornell Dubilier 60s (PIO oiled paper) ZYW1S5: .03uf/150V for the bridge pickup and .05uf/150V for the neck pickup , two carbon resistors 180K to 220Kohms for better volume control type "by pass treble" at the output, avoid loss of midrange/treble when the volume is reduced;

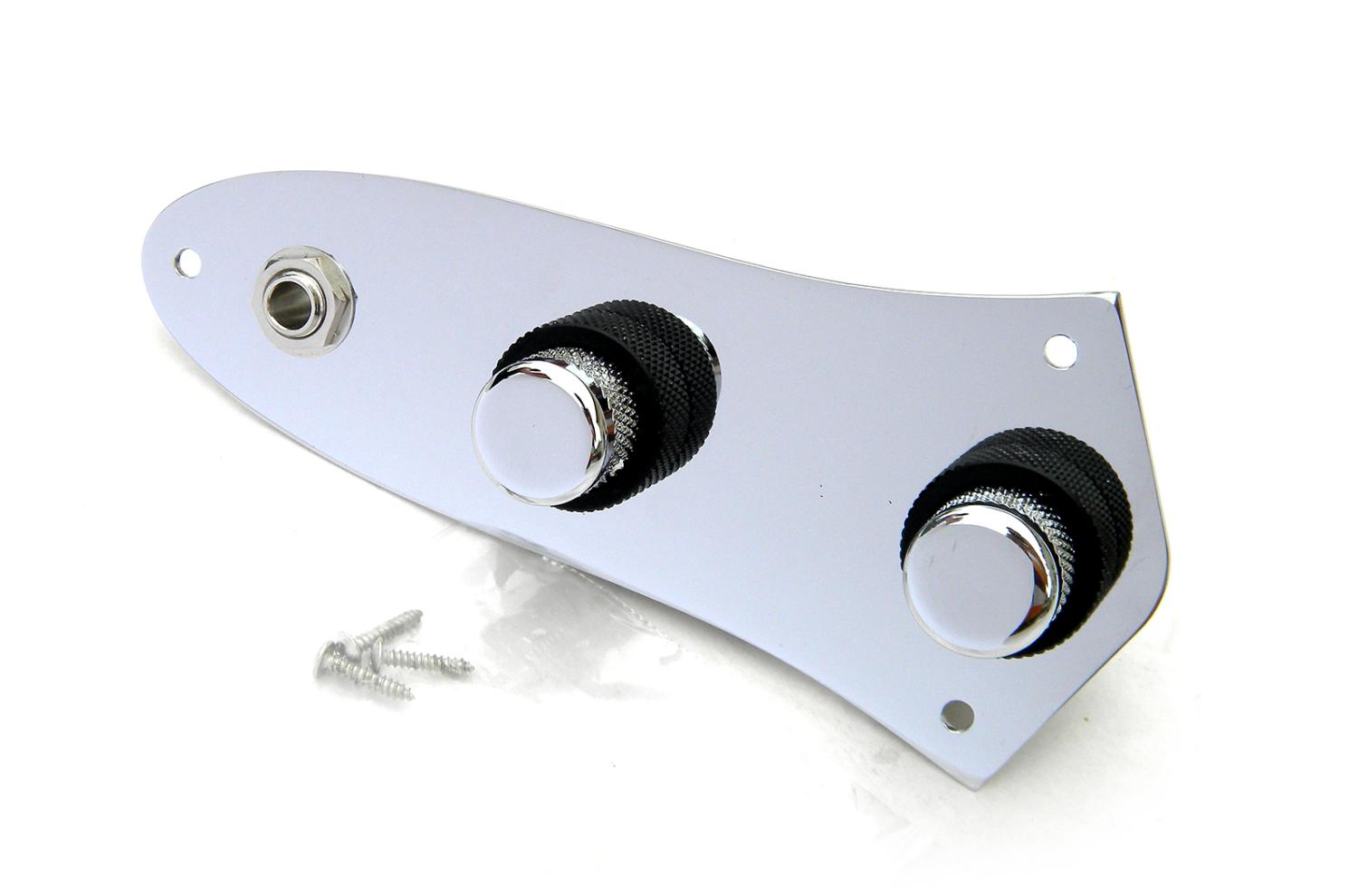

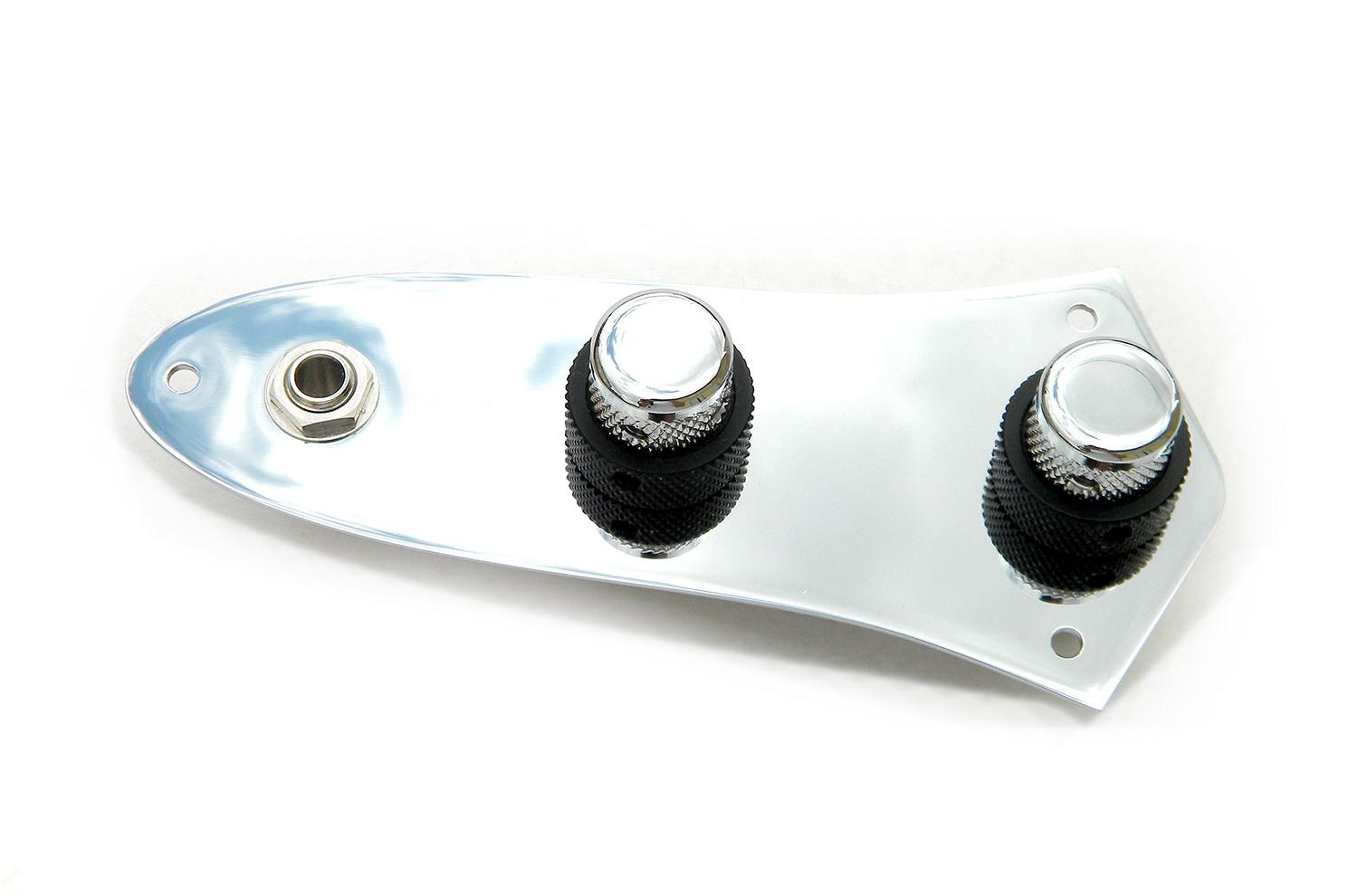

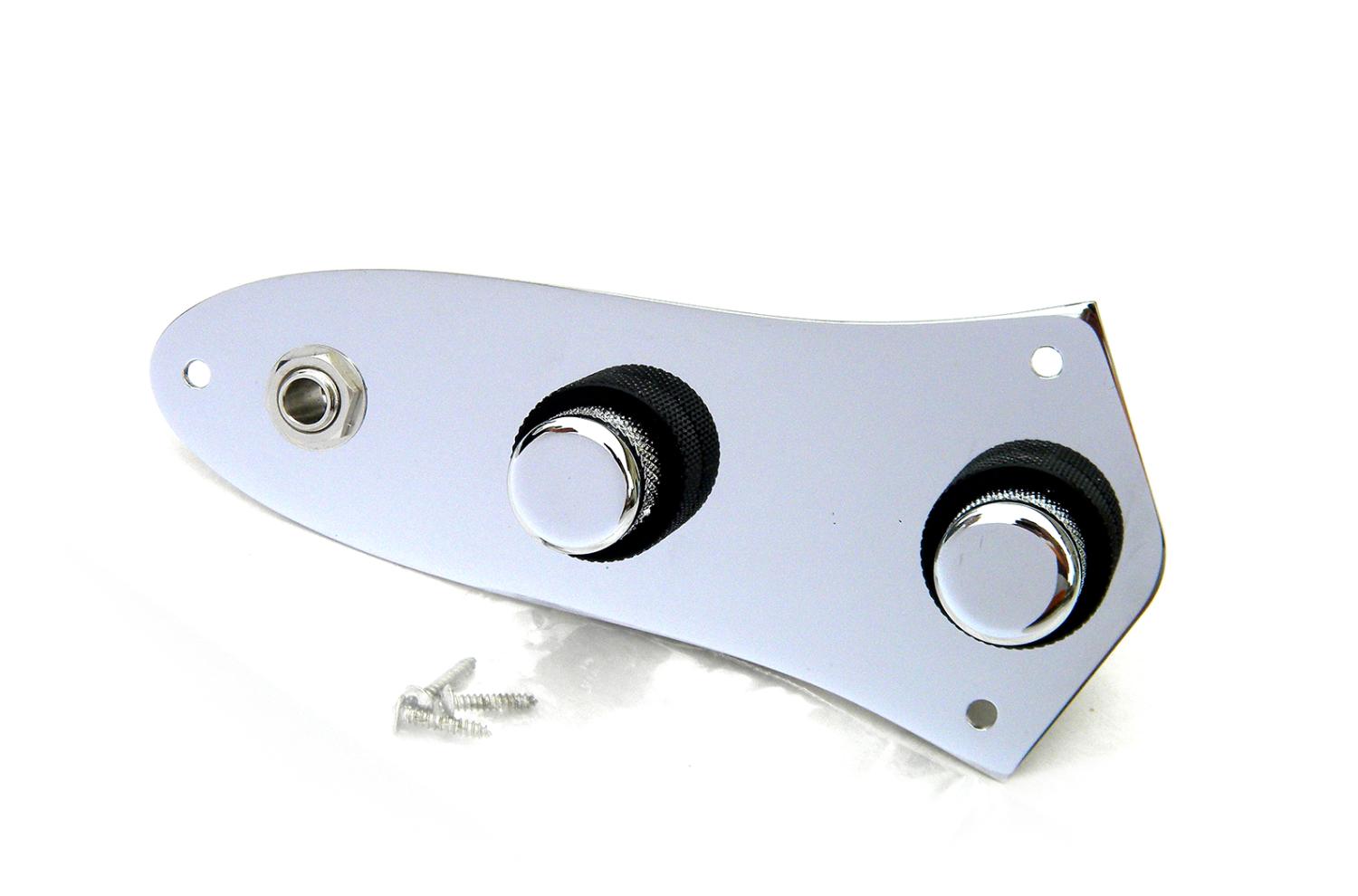

• Two stepped chrome-plated brass buttons, the tone part is made of anodized aluminum, with side fixing screws, vintage single-conductor copper wiring, waxed cotton sheath;
• A plate with classic dimensions, supplied with its mounting screws;
• American Vintage reproduction plate assembled in France, preferably to be mounted with JazzBass Custom Shop 60 or vintage noiseless pickups, compatible in passive mode with modern noiseless pickups;
• Plate supplied with screws, mounting plan.
