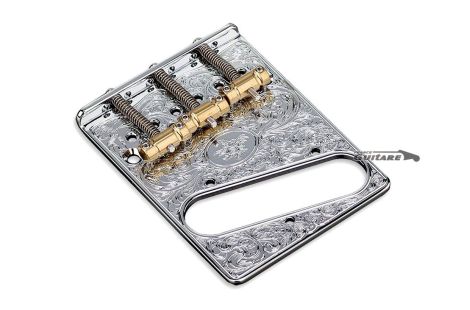

Gotoh Engraved Tn Tune Compensated Chrome Telecaster Bridge

Gotoh Engraved Tn Tune Compensated Chrome Telecaster Bridge

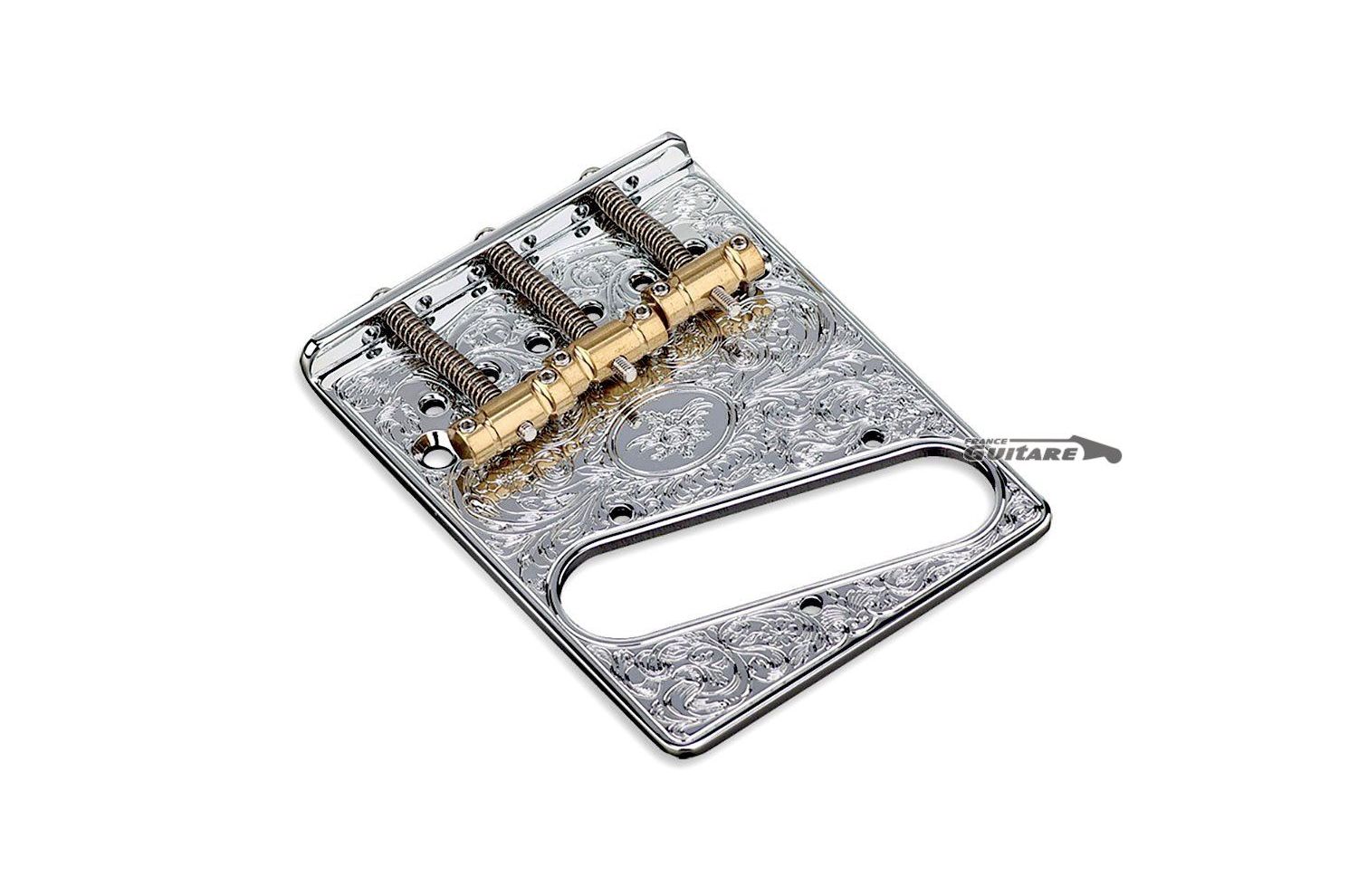

Gotoh Engraved Tn Tune Compensated Chrome Telecaster Bridge, for standard or vintage Telecaster single coil pickup , 3mm thick plate. 3 compensated saddles for better tuned tuning and harmonics, adjustable, adjustable action allen key, cruciform screw for intonation adjustment.

• The bridge plate is made of thick chrome steel, the saddles are made of brass;

• Standard bridge plate dimensions for almost all Telecasters made in mexico , made in USA or made in Japan (Check dimensions);
• Comes with mounting screws and 1.5 adjustment allen key.

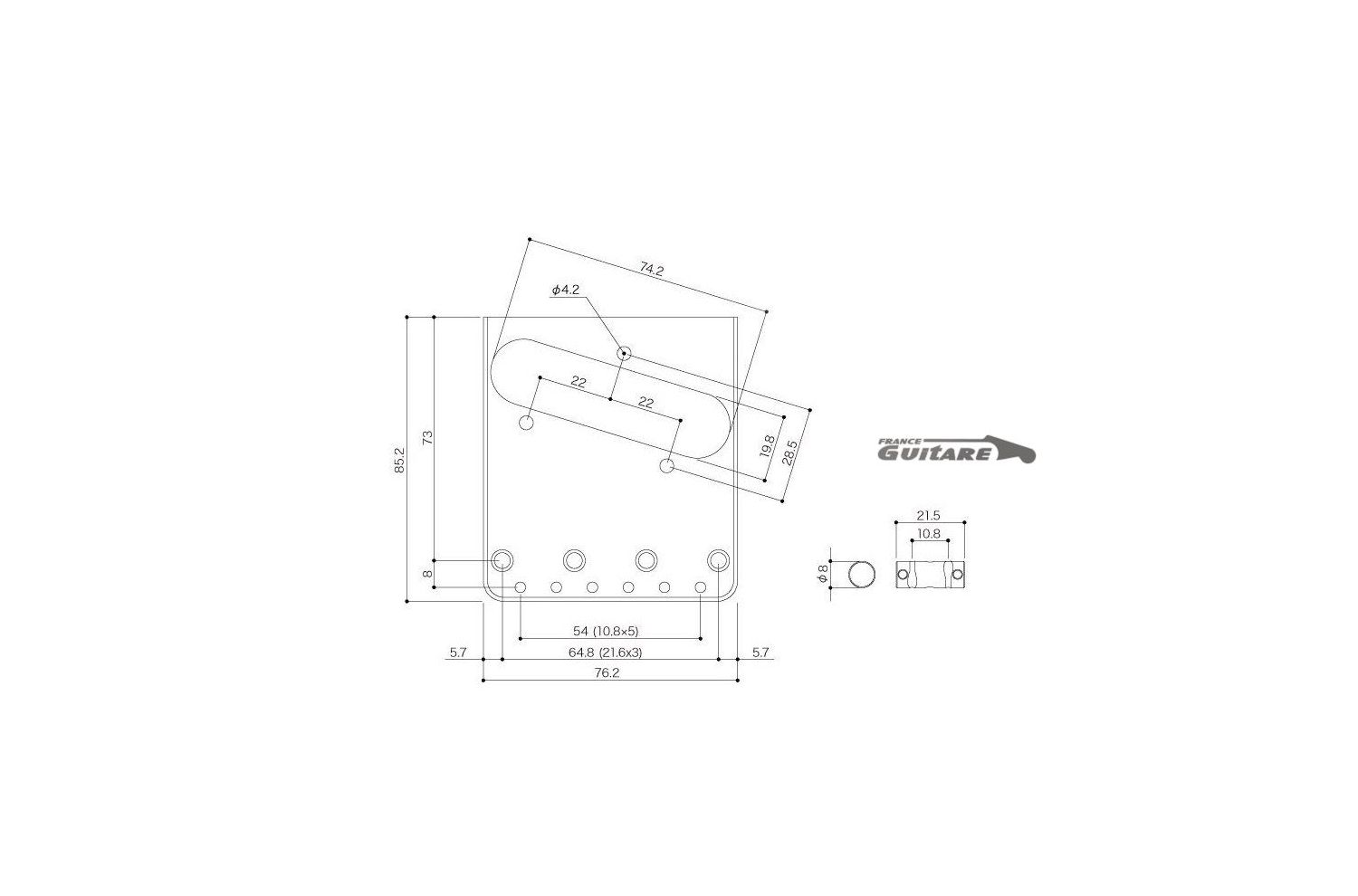

Feature Engraved Tn Tune Telecaster Bridge

• Width of the bridges: 10.8mm, height 5mm, length 24mm;
• Bridge bridge for through strings;
• Mi-Mi (EE) spacing width: 54mm;
• Plate thickness: 3mm;
• Spacing of the mounting screws on the body: 64.8mm between the two end screws, 21mm between each screw;
• Dimensions of the bridge plate: 76.2mm X 85mm.
