Loaded Pickguard Assembly Stratocaster David Gilmour Custom Shop White

Loaded Pickguard Assembly Stratocaster David Gilmour Custom Shop White

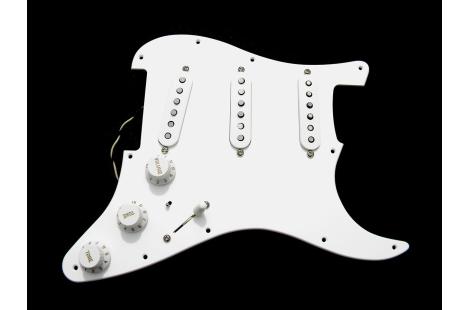

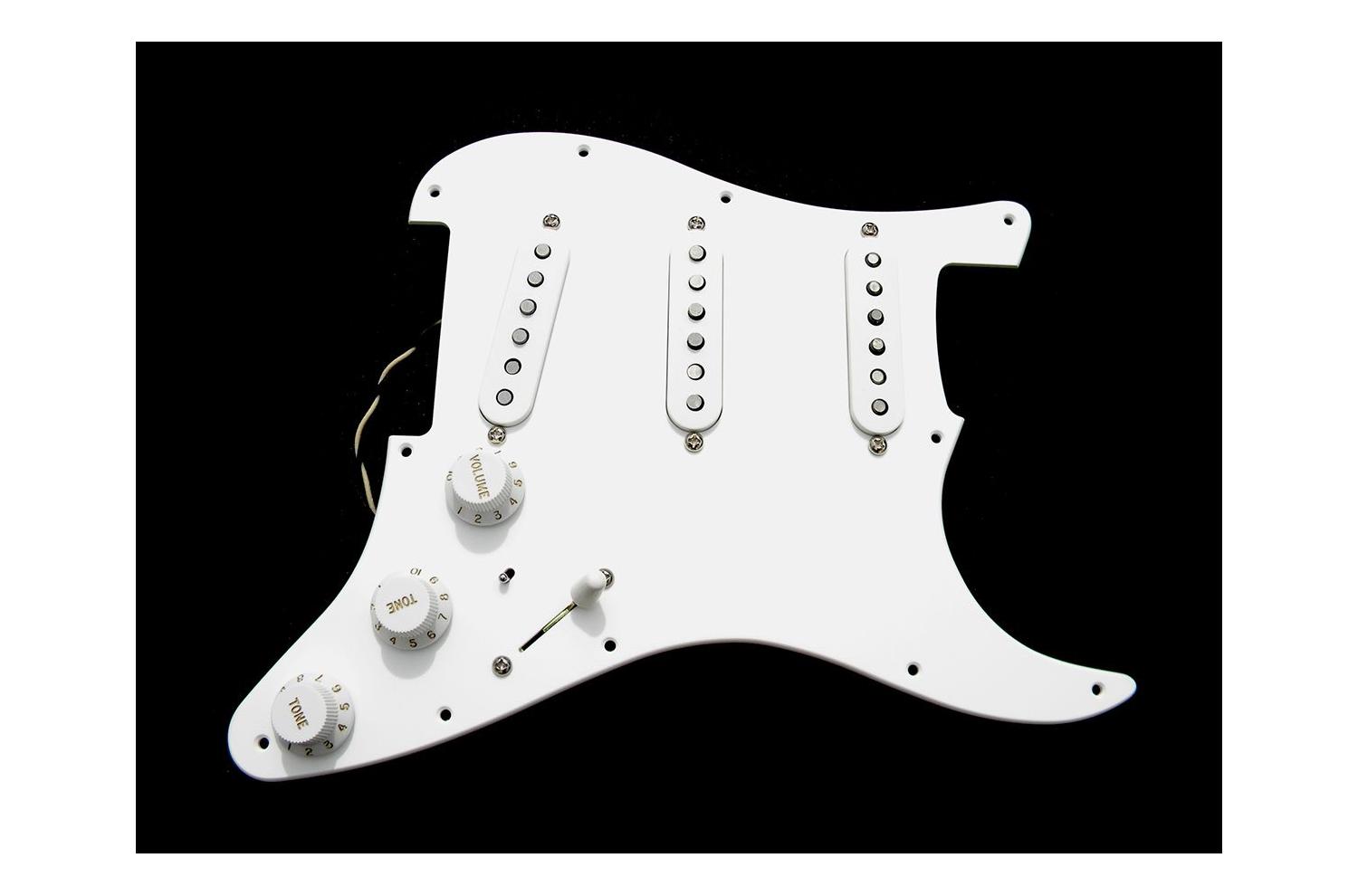

Long requested and finally available: Loaded Pickguard assembly Fender Stratocaster Artist David Gilmour glossy white vinyl/acrylic one ply 2.9mm thick with chamfered and polished edges, 11 standard holes, pickguard assembled with unique Custom Shop Fender/ Seymour Duncan hybrid pickup set Seymour Duncan .

Loaded Pickguard Assembly Stratocaster David Gilmour Custom Shop White

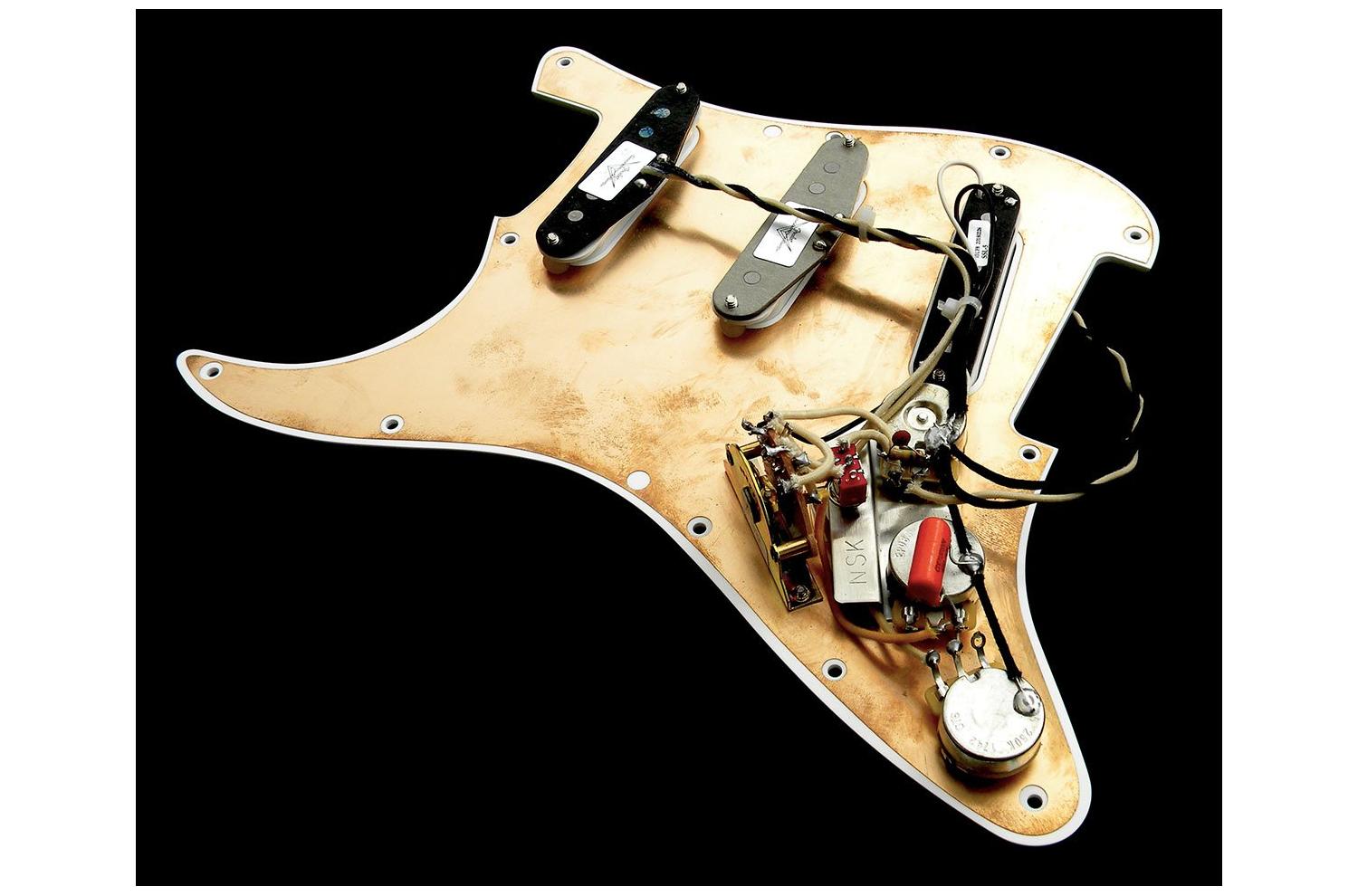

• Special Custom-Voiced David Gilmour pickups from the original Black Strat: Combination of Fender Custom Shop Fat 50's pickups on the neck , Custom Shop 1969 on the midrange side, a powerful single coil on the bridge side from Seymour Duncan Vintage SSL5 Staggered noiseless, a pickguard that reproduces Identical sound of the Gilmour Black Strat from the Fender Custom Shop ;
• Electronics mounted on copper conductor with custom-cut stainless steel support plate for the discreet on-on switch of the neck pickup , CTS Audio 250 or 300K linear volume of your choice (notify us when ordering, volume 300K by default);
• 250K audio log CTS USA tone potentiometer, with Fender Sprague Orange .047uf/250V capacitor, Crl or Oak USA 5 position selector, treble bleed ;
• Special microphone combination with the "on-on" neck pickup switch you benefit from two complementary microphone combinations, volume knob , tone No. 1 for the Fat 50's neck pickup and tone No. 2 for the middle 69 pickup ;
• Using the "on/on" switch allows you to activate the neck pickup in positions 1 and 2 of the selector: you then switch to neck + bridge mode or to 3 neck + middle + bridge pickups in parallel mode;
• Glossy "acrylic" vinyl pickguard 2.9mm thick, 11 standard holes, supplied with stainless steel mounting screws as well as matching tremolo arm knob .

This pickguard benefits from a careful, high-end finish, a real glossy vinyl cut made in USA with chamfered edges with a polishing finish, compatible with all Strat USA bodies and 11 mounting holes (Warning: fragile: the glossy vinyl does not need to be maintained like plastic), shiny vintage white Fender buttons and pickup covers.

• MP3 audio demo of the Seymour Duncan SSL5 pickup

Features Seymour Duncan David Gilmour and Fender® pickup plate:

• Vintage Seymour Duncan SSL-5 Alnico 5 Micro Bridge: approximately 12.5K to 13.4K;
• Reissue 1969 Custom Shop center midrange pickup: approximately 5.6 to 5.8K;
• Fat 50's Custom Shop Fender Neck pickup : approximately 5.9K to 6.3K;
• Brigde + Medium combination average 3.4 to 4K;
• Neck + Medium combination average 2.9 to 3.2K;
• Bridge + Neck combination medium 3.9 to 4.6K;
• Bridge + Medium + Medium Neck combination 2.2K to 2.8K.

Fender Strat Custom Shop Demo Video David Gilmour Fender
